Why Does an Armored SUV Power Tailgate Stop Working After Ballistic Glass or Armor Protection?

Armored SUVs are often upgraded with ballistic glass, steel protection plates, reinforced panels and security accessories. These modifications can significantly increase tailgate weight and change the tailgate’s center of gravity.

As a result, the original factory power tailgate system may no longer open, hold or close the tailgate correctly.

The Short Answer

An OEM power liftgate system is designed around the original tailgate weight, balance, hinge geometry and motor load.

After ballistic glass or armored protection is added, the tailgate load may increase by 50 kg or more depending on the vehicle and protection level. The center of gravity may also move farther away from the hinge axis.

This increases the torque required to move the tailgate. If the original electric struts, motor and mounting structure are not designed for this load, power tailgate failure becomes likely.

Common Failure Symptoms

After an armored upgrade, the power tailgate may show these problems:

• Tailgate stops halfway during opening

• Tailgate cannot fully close

• Auto-reverse during closing

• Motor overload warning

• Electric tailgate strut failure

• Slow or unstable movement

• Tailgate sagging after opening

• Abnormal noise from the drive system

• Hinge or bracket deformation

These symptoms usually indicate that the system is operating beyond its original design range.

(https://www.youtube.com/embed/wPaY-oc1MqA?si=LZtPfe-qwFRPe1Mr)

Why Weight Alone Is Not the Only Problem

Tailgate performance is not determined only by total weight. The key engineering factor is hinge torque.

A simplified relationship is:

Required hinge torque = tailgate load × distance from center of gravity to hinge axis

When ballistic glass or armor plates are installed farther from the hinges, the required operating torque can increase sharply. This is why two tailgates with the same added weight may require different strut force and motor output.

Why Replacing Struts Alone Is Not Enough

Simply installing stronger electric struts may improve lifting force temporarily, but it does not always solve the root cause.

If the system is not redesigned as a complete assembly, excessive force may create new risks:

• Higher stress on hinges and brackets

• Poor anti-pinch performance

• Difficult manual closing

• Motor overheating

• Transmission wear

• Body mounting deformation

• Unstable operation on slopes

For armored vehicles, the correct solution must balance actuator force, motor torque, structural strength, software calibration and safety protection.

What Should an Armored Vehicle Power Tailgate Upgrade Include?

A reliable heavy-duty power tailgate system for armored SUVs should include:

• Heavy-duty electric tailgate struts

• High-torque drive motor assembly

• Tailgate weight measurement

• Center-of-gravity analysis

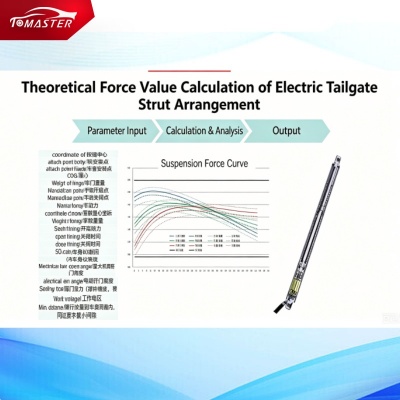

• F1/F2 opening and closing force calculation

• Reinforced brackets and mounting points

• Intelligent anti-pinch force adjustment

• Motor current and thermal protection calibration

• Vehicle-level opening and closing cycle testing

• Slope, vibration and hold-position validation

Engineering Data Required Before Customization

Before selecting or customizing a system, engineers should confirm:

• Vehicle model and production year

• Original tailgate structure

• Added armor weight

• Ballistic glass and plate distribution

• Final tailgate weight

• Tailgate center of gravity

• Hinge geometry

• Original strut size and mounting position

• Required opening angle

• Target operating speed

• Electrical system capacity

• Safety and durability requirements

Engineering Conclusion

For armored SUVs, power tailgate failure is usually not a simple strut problem. It is a complete load, torque, structure and control-system problem.

TOMASTER develops customized heavy-duty power tailgate solutions for armored vehicles, off-road SUVs, rear spare tire carrier upgrades and professional vehicle modifications. Final actuator selection should always be based on measured vehicle data and complete system validation.
